Force Z-23 HLT
World-class results for every field
Everything You Need
Light Footprint - With a dramatically smaller and lighter footprint than other laser grading machines, the Z-23 enables laser finish-grading in tight areas and on materials where over compaction of the soil is unacceptable.
Internal Hydraulic Control System - The laser-ready build configuration can be operated manually without the use of the separately purchased laser electronics.
All The Bells and Whistles - The Z-23 has a range of laser grading accessories to fit the requirements of your job. This includes a range of transmitters, tripods, grade rods, and other laser system accessories.
FEATURES
Industry Leading Technologies
Responsive Variable Force Technology (RVF)+
Zero-Turn Functionality+
Speed Lock + Depth Lock+
Total Control+
Beltless Hydrostatic Drive System+
Heavy-Duty 2-Stage Air Filter+
ATTACHMENTS
MID-MOUNT
REAR-MOUNT

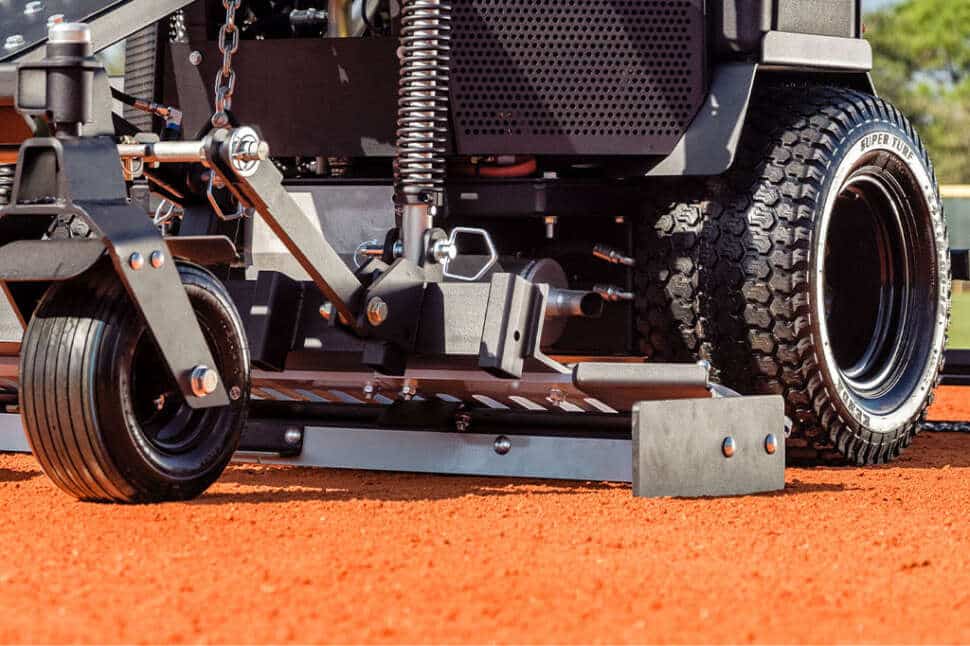

Mini Box Blade
Skip the handwork and quickly level and grade in the tightest areas or on surfaces where a light footprint is necessary.

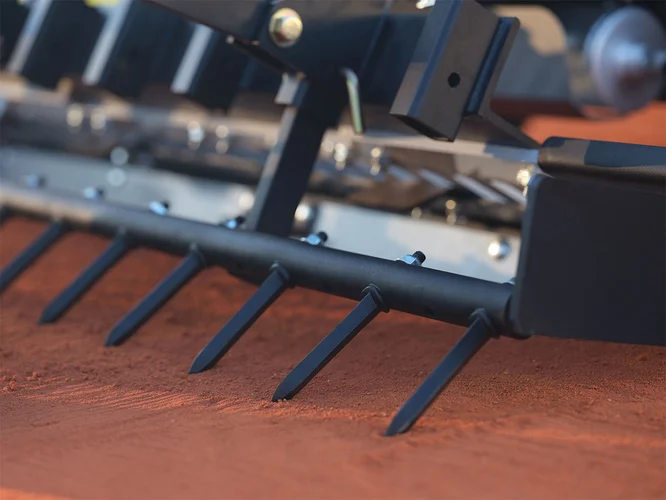

Tooth Bar
Designed to fracture and loosen material to keep the optional Mini-Box loaded with material.

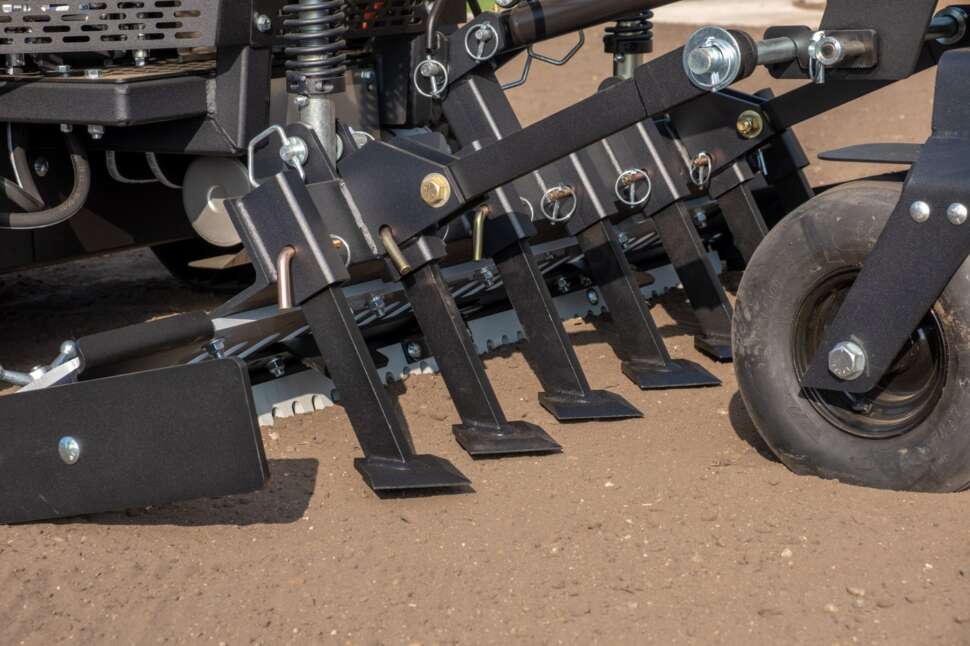

Stealth Blade
Our proprietary Stealth Blade design offers the perfect subsurface compaction relief.

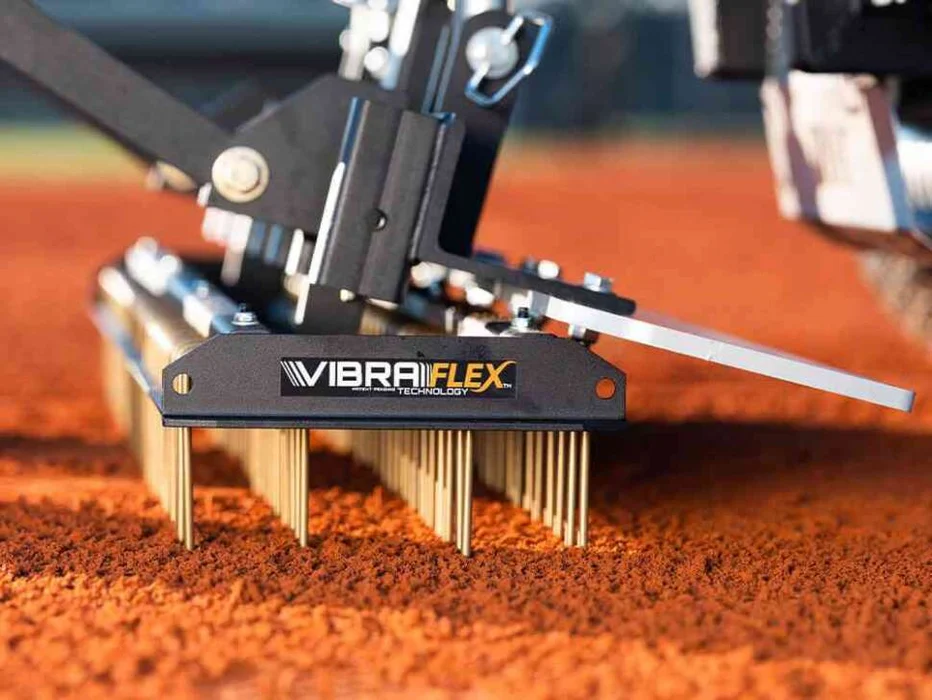

VibraFlex
Evenly staggered U-pins transfer vibration and flex from front to back, dancing along the infield to shatter surface tension.

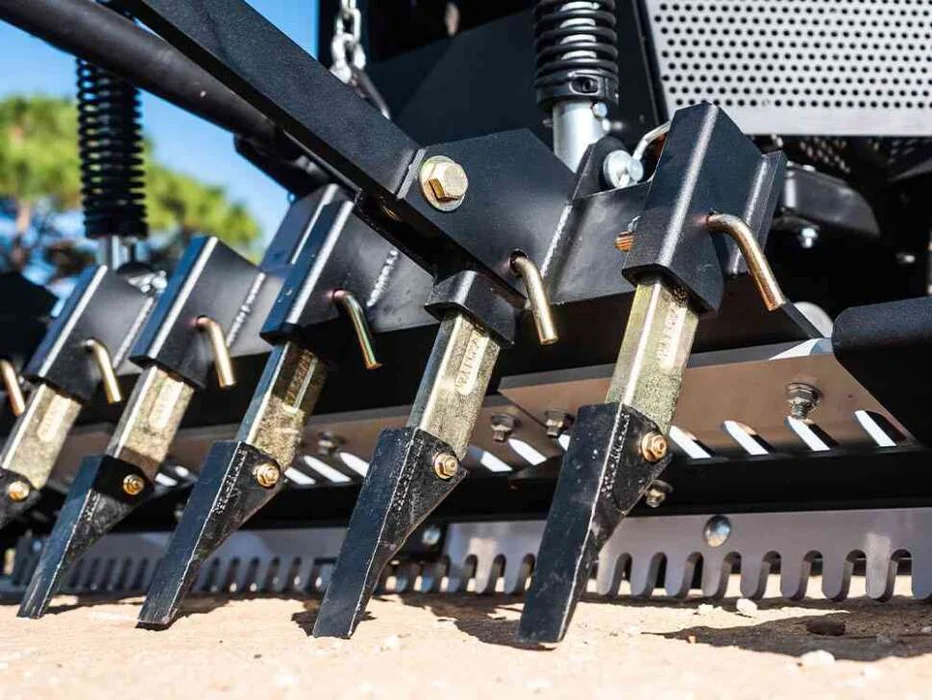

Scarifiers
The Ripping Teeth make easy work of extreme hardpan and vegetation outside of the field.

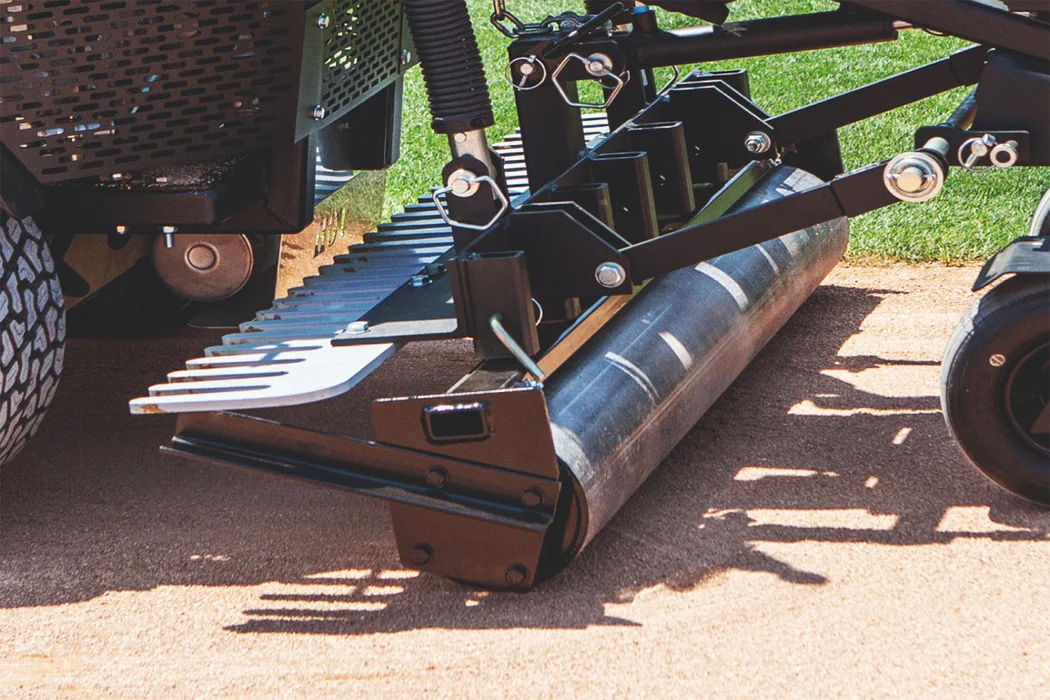

Roller
The underbelly roller has a 58” working width & an 8” roller diameter.

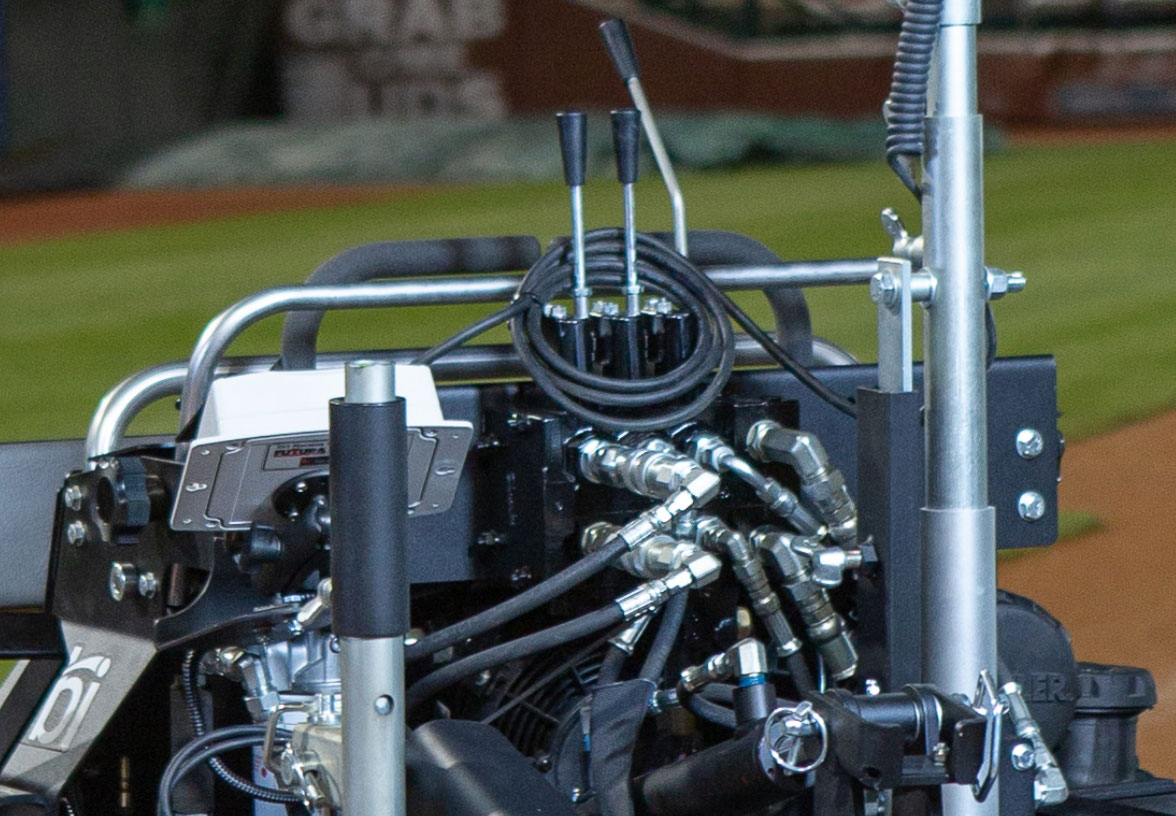

Internal Hydraulic Control System
The hydraulic system on the Z-23 can be built with a manual-operation exclusive or manual/laser-ready configuration. The manual-operation exclusive build is not upgradable after initial factory-build. The laser-ready build configuration can be operated manually without the use of the separately purchased laser electronics should an operator not have them available.
Machine-Side Laser Electronics
The available machine-side laser electronics package transforms the Z-23 into an automated laser grading machine. This system is perfectly matched and pre-programmed for plug-and-play operation.

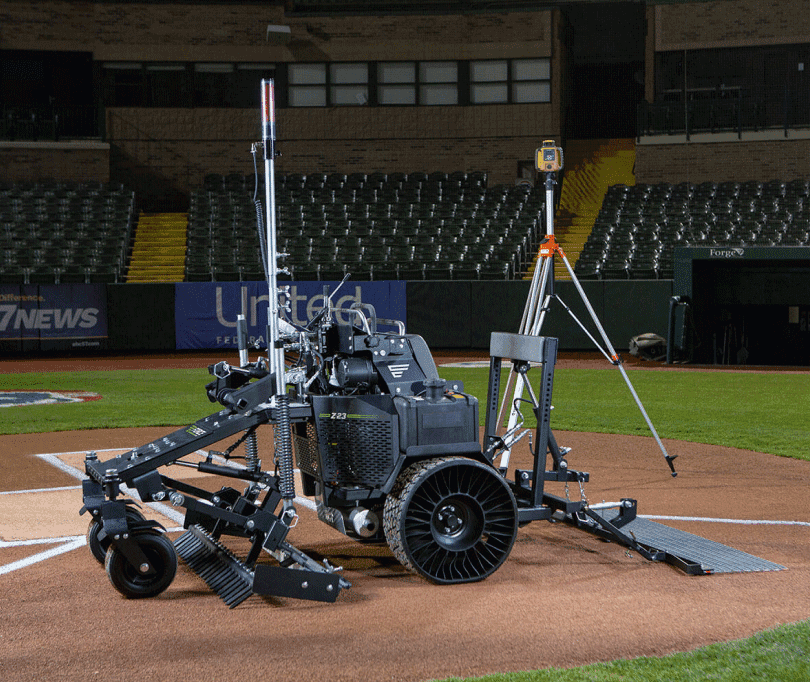

Transmitter, Tripod, and Accessories
We offer a range of transmitters, tripods, grade rods, and other laser system accessories to suit the requirements for your job. The Z-23 is also able to be paired with almost any flat, single, or dual-slope laser transmitter you may already own.
